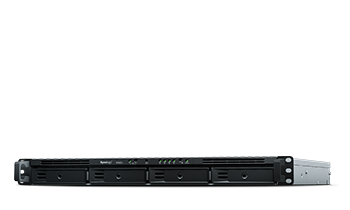

Synology RackStation RS820+​

€1,257.00

Available on backorder

Category:

Description

CPU

 CPU Model Intel Atom C3538
CPU Quantity 1
CPU Architecture 64-bit
CPU Frequency 4-core 2.1 GHz
Hardware Encryption Engine (AES-NI)

Memory

 System Memory 2 GB DDR4 non-ECC
Total Memory Slots 1
Maximum Memory Capacity 18 GB (2GB + 16 GB)
Notes
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier’s product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

 Drive Bays 4
Maximum Drive Bays with Expansion Unit 8 (RX418 x 1)
Compatible Drive Type* (See all supported drives)
  • 3.5″ SATA HDD
  • 2.5″ SATA HDD
  • 2.5″ SATA SSD
Maximum Single Volume Size* 108 TB
Hot Swappable Drive
Notes
  • “Compatible drive type” indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • Each internal volume (may consist of multiple drives) is expandable up to 108TB.

External Ports

 RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port* 2
eSATA Port 1
Notes The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

 PCIe Expansion 1 x Gen3 x8 slot (black, x4 link)

File System

 Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
Notes exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.

Appearance

 Form Factor (RU) 1U
Size (Height x Width x Depth) RS820+ :44 mm x 480 mm x 492.6 mmRS820RP+ :44 mm x 480 mm x 518.6 mm
Weight RS820+ :6.4 kgRS820RP+ :7.96 kg
Rack Installation Support* 4-post 19″ rack (Synology Rail Kit – RKM114/RKS1317)
Notes The rail kit is sold separately

Others

 System Fan RS820+ :40 mm x 40 mm x 3 pcsRS820RP+ :40 mm x 40 mm x 2 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Power Recovery
Noise Level* RS820+ :27 dB(A)RS820RP+ :39.9 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 150 W
Redundant Power Supply RS820+ :–RS820RP+ :
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* RS820+ :37.94 W (Access) 20.96 W (HDD Hibernation)
RS820RP+ :38.88 W (Access) 22.17 W (HDD Hibernation)
British Thermal Unit RS820+ :129.54 BTU/hr (Access) 71.57 BTU/hr (HDD Hibernation)
RS820RP+ :132.75 BTU/hr (Access) 75.70 BTU/hr (HDD Hibernation)
Notes
  • Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

 Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH

Certification
  • FCC
  • CE
  • BSMI
  • EAC
  • CCC
  • KC
  • VCCI
  • RCM

Warranty

 3-year hardware warranty, extendable to 5-year coverage – EW202
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

 RoHS Compliant

Packaging Content

 RS820+ :

  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • Quick Installation Guide X 1

RS820RP+ :

  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
